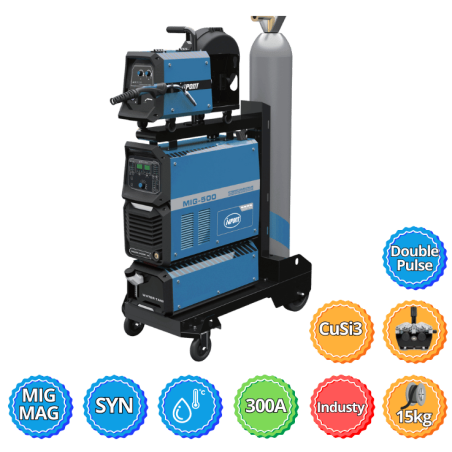

ÍVPONT MIG/MAG 500P SYN Industrial Welding Machine
HUF 2,081,530
HUF 1,892,300
Save HUF 189,230
VAT included
Delivery in 3-4 business days
ÍVPONT 500A MIG/MAG Synergic Double Pulse Inverter CO Welding Machine
Water-Cooled with Separate Feeder Design. Recommended for industrial use.
Perfectly suited for aluminum and stainless steel welding!
Reliability, speed, and high-quality welds!
The promotion is valid until withdrawn or while promotional stock lasts!
Images are for illustration purposes only!
Net price: 3 463,71 €
Data Safety policy
We handle your data confidentially and store it securely!
Delivery Policy
The delivery is carried out by a third party, so the charges may vary.
Warranty policy
Our company provides a warranty for most of our products. For more information, click here!
500A Gas-Shielded MIG/MAG Inverter, Synergic, Double Pulse, Water-Cooled, Separate Feeder Welding Machine
Suitable for Industrial Applications
Welding Modes
- Double Pulse MIG/MAG:
- Steel
- Aluminum
- Stainless Steel
- Hardfacing and edge surfacing
Functions
- Wire feeding function
- Gas test
- Synergic feature: Automatically adjusts optimal voltage and wire feed speed after setting the required parameters.
- Adjustable wire diameter: 0.8–1.6 mm
- Selectable wire composition (Steel, AlMg, AlSi, Stainless Steel)
- Digital amperage and voltage adjustment
- Digital control system
- 2T/4T mode adjustment
- Welding process memory storage
- Digital welding function settings
- Gas check function
- Inductance adjustment
- Synergic and manual mode selection
- Conventional welding functions
- Digital pulse and double pulse adjustment for pulse welding
Features
- 500A welding performance
- Adjustable current and voltage from a separate feeder
- Water cooling
- Separate feeder with connecting cable
- Potentiometer adjustment
- Welding program storage
- Digital display
- Supports welding wires with 0.8–1.6 mm diameter (15–18 kg, 300 mm spool)
- Robust double-roller wire feeding mechanism (4 rollers)
- 2T/4T mode adjustment
- Connector for gas regulator heater
- Welding cylinder holder
- Conventional, pulse, and double-pulse welding options
- CO work cable holder on the machine
- Durable industrial chassis and frame with sturdy wheels
- Excellent for industrial use
- Intelligent synergic control
Accessories Included
- 4-meter CO work cable
- Ground cable
Warranty
- 12 months
3 Items
Data sheet
- Model
- MIG - 500P
- Nominal input voltage (V)
- 3 phase, 380V +/- 15%
- Efficiency (%)
- 85
- Safety class
- IP21S
- Insulation class
- F
- Cooling type
- Water-cooling
- Power consumption (KW)
- 25,3
- Power factor
- 0,93 cos φ
- Welding current (A)
- 60 - 500
- Output voltage (V)
- 15 - 40
- Nominal duty cycle (%)
- 60
- Wire feeder type
- Built-in
- Post-flow time
- 1-2s
- Welding wire diameter
- 0,8 / 1,0 / 1,2 / 1,6
- Processable material thickness (mm)
- ≥0,8
- Overall dimensions (H x W x D)
- 1160 x 720 x 1250 mm
